Exchange 2019 Installation Screenshot Walkthrough

Alexander Zammit

Alexander Zammit Photo

Software Development Consultant. Involved in the development of various Enterprise software solutions. Today focused on Blockchain and DLT technologies.

Cast your Vote
Poor Excellent

Would you like to see what the Exchange 2019 installation looks like? Here are the screenshots of every step...

As with every Exchange release the first step is to look up the installation system requirements and the pre-requisites.

To begin Exchange 2019 server must be installed on Windows 2019 Standard or Datacentre.

We also need to be aware of the supported co-existence scenarios. Exchange 2019 will co-exist with Exchange 2013 CU21 and later.

The Domain Controller minimum version must be Windows Server 2012 R2 and consequently the AD forest functional level must be at least Windows Server 2012 R2.

For the complete list of requirements check the links at the end of the article.

Once the requirements are satisfied we are ready to clear the pre-requisites. These depend on which roles we are installing and whether Exchange is being installed on Windows Core or Desktop Experience. Again the pre-requisites article linked at the end covers all of this thoroughly.



Installation Steps

Here is our screenshot walkthrough, starting from the first 'Check for Updates?' step to the final 'Setup Completed!' closing wizard page.

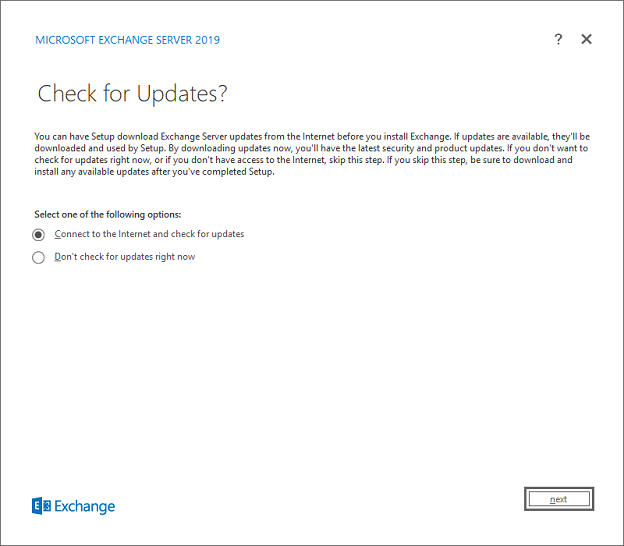

Check for Updates

Copying Files

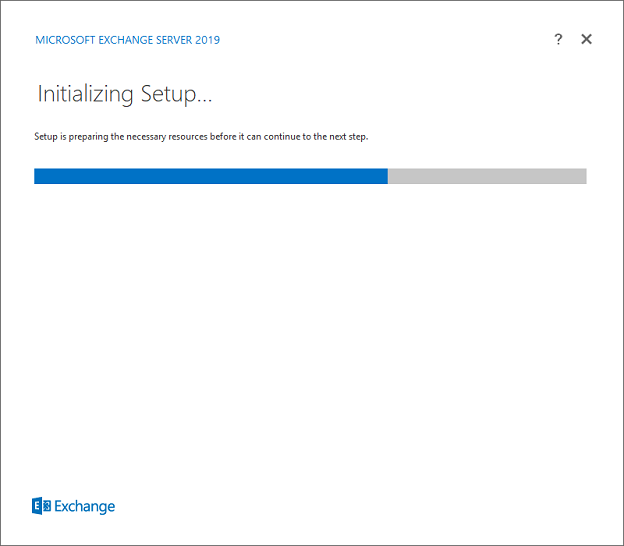

Initializing

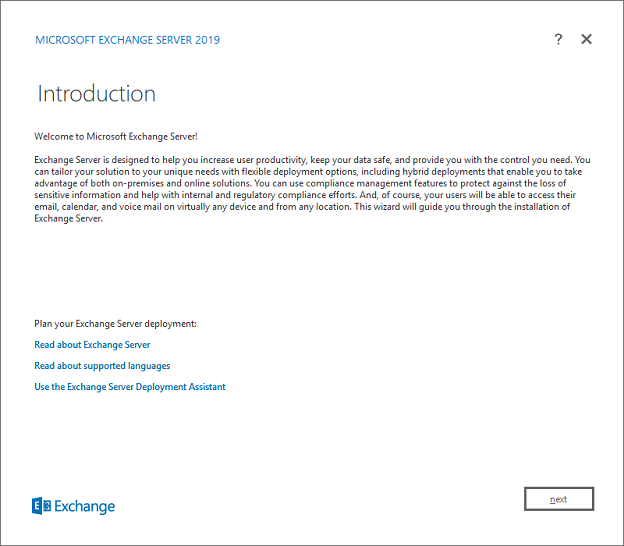

Intorduction

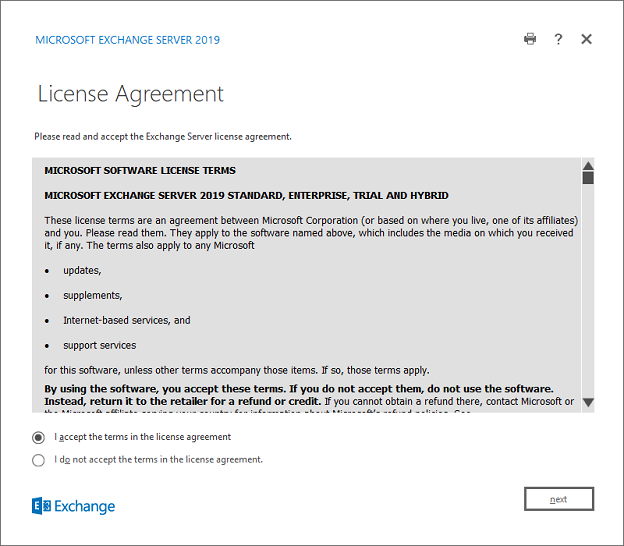

License Agreement

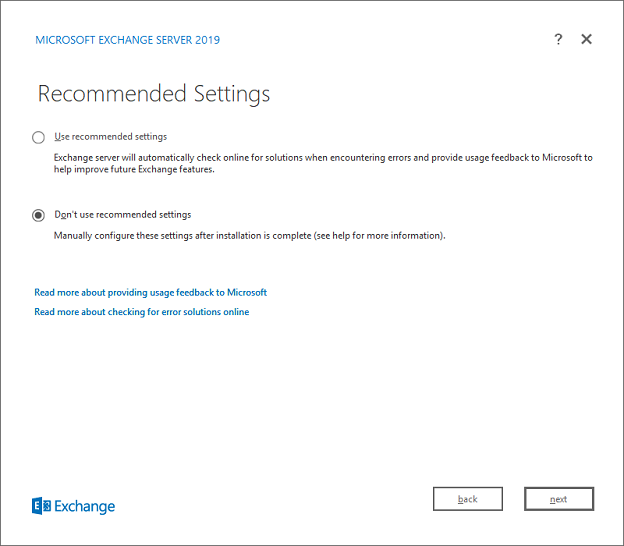

Default or Custom Installation

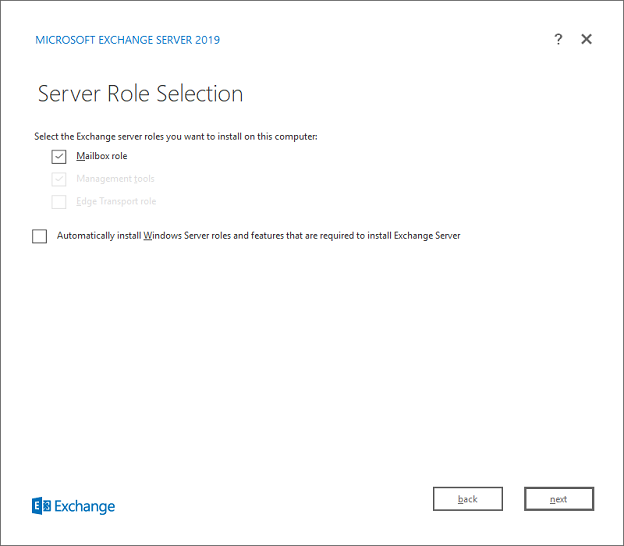

Exchange Role Selection

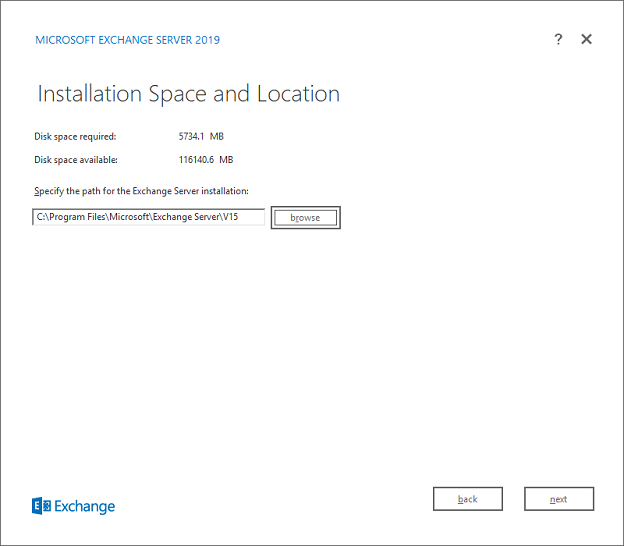

Installation Path

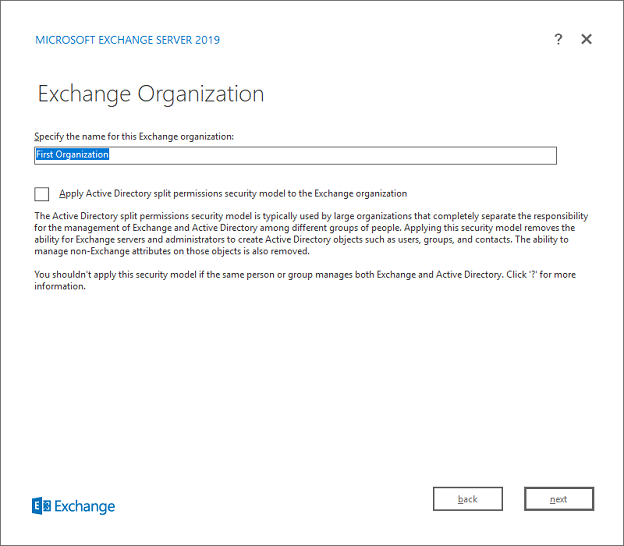

Exchange Organization Name

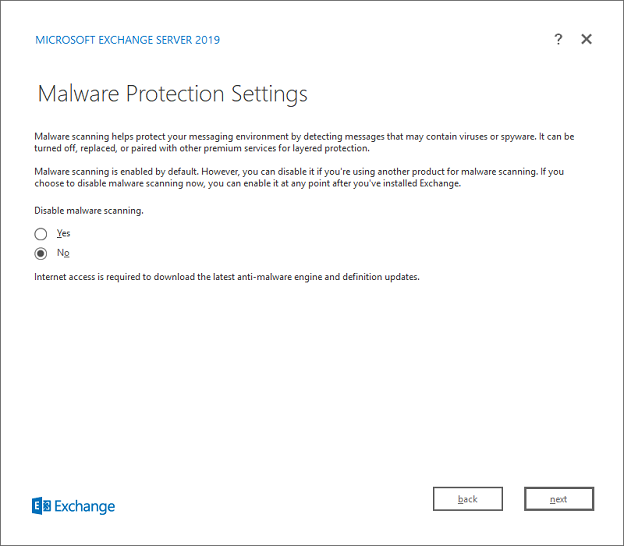

Enable Malware Agent

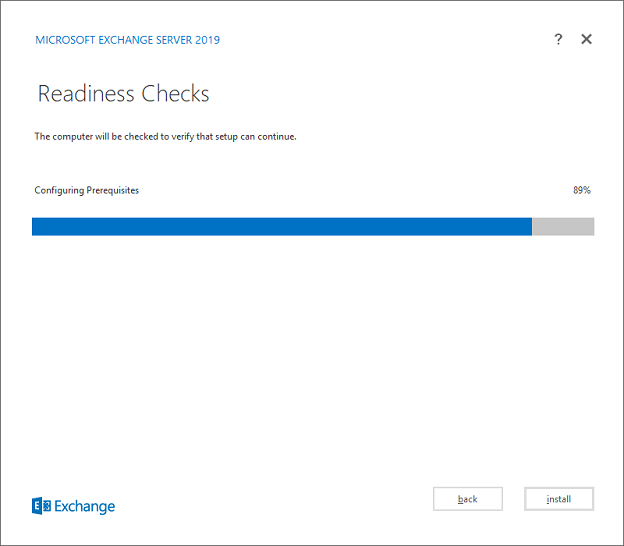

Readiness Check

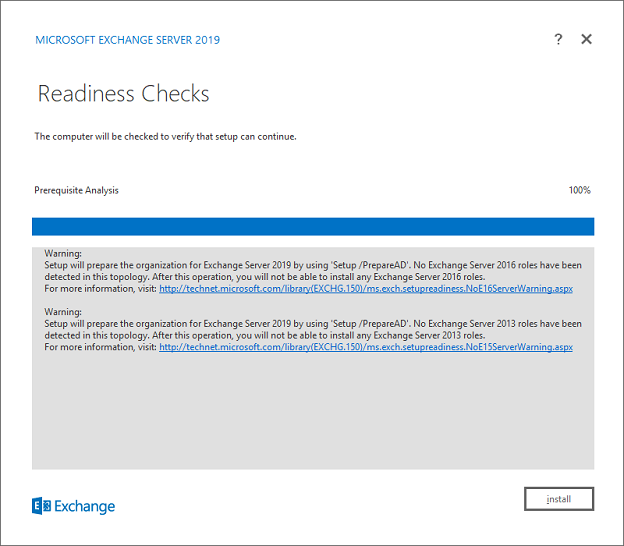

Readiness OK

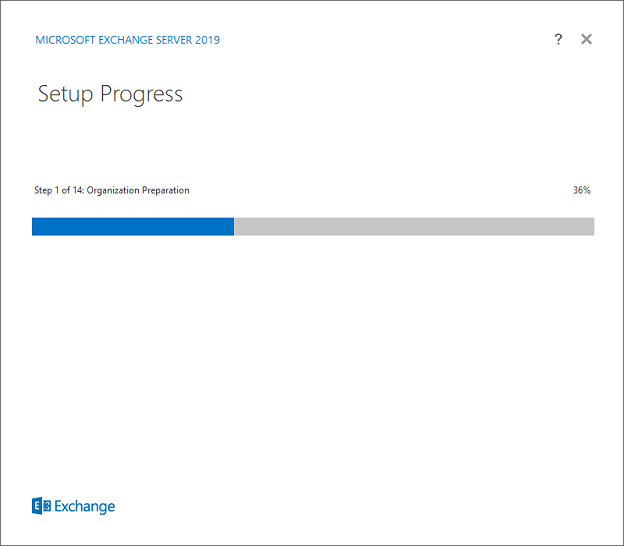

Installation Progress

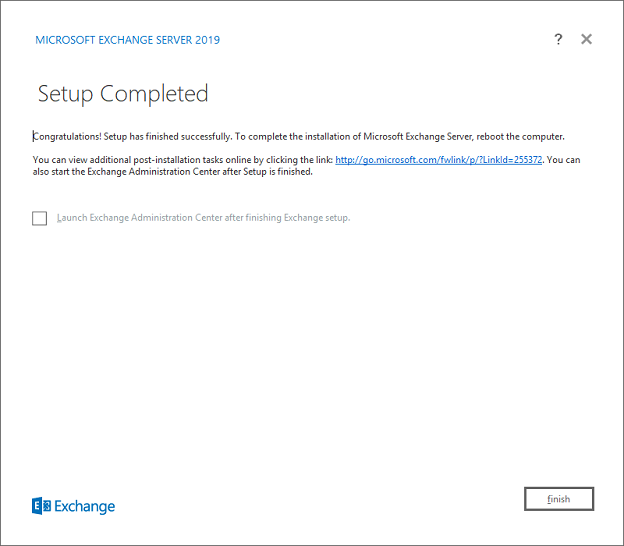

Installation Complete



References

Exchange Server system requirements

Exchange Server prerequisites
