Upgrading from Exchange 2003 to 2010

Vladimir Meloski [MCSE, MCITP, MCT, MVP]

Vladimir Meloski [MCSE, MCITP, MCT, MVP] Photo

Vladimir Meloski is a Microsoft Certified Trainer and Most Valuable Professional on Exchange Server. He is a consultant, providing unified communications and infrastructure solutions based on Exchange Server and System Center. Vladimir has been involved in Microsoft Conferences in Europe and US as a Speaker, Proctor for Hands on Labs and Expert.

Cast your Vote
Poor Excellent

In this article we will describe the process of upgrading an Exchange organization from version 2003 to 2010. We start from the introduction of the first Exchange 2010 server and complete it with the decommissioning of the last Exchange 2003 server.

Hub Transport Server Coexistence

NOTE: If planning to employ the Exchange 2010 Edge Transport please skip this section. The following articles discuss deploying the Edge Transport server role. These were written for Exchange 2007 however they are still largely valid for Exchange 2010 as well:
Installing, Configuring Exchange 2007 Edge Server (Part 1)
Installing, Configuring Exchange 2007 Edge Server (Part 2)
Deploy an Edge Transport Server in an Existing Exchange Server 2003 Organization

Exchange 2010 provides two server roles for handling email transport, the Edge and Hub transport roles. In simple terms we can consider the Hub Transport to be the replacement for the Exchange 2003 transport functionality. Thus here we consider the transition from the Exchange 2003 transport to the Exchange 2010 Hub transport.

After installing Exchange 2010, the mail from/to the internet still flows through the Exchange 2003 bridgehead. In order to reroute the mail transport to go through the new Exchange 2010 Server, the inbound and outbound traffic should be reconfigured, depending on the company messaging infrastructure.

To allow inbound traffic from the internet, the SMTP gateway or firewall should point to the new Exchange 2010 Hub Transport server. In addition the Receive Connector at the Hub Transport should be configured to allow the "Anonymous users" permission group. In this manner the Hub Transport accepts incoming emails from external SMTP servers.

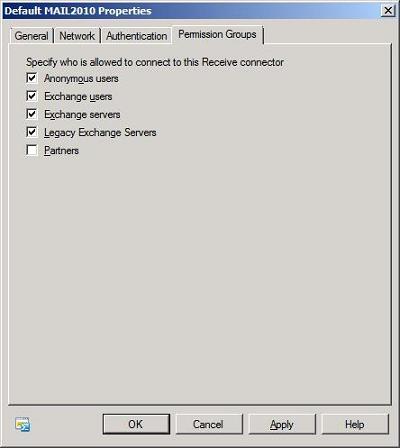

Anonymous User Permissions

To allow outbound traffic to the Internet, a Send Connector with * namespace should be configured to route outgoing messages directly or using smart host. This can be done from the Exchange Management Console or the Exchange Management Shell using the following command:
new-SendConnector -Name 'Internet Connector' -Usage 'Internet' -AddressSpaces 'SMTP:*;1' -IsScopedConnector $false -DNSRoutingEnabled $true -UseExternalDNSServersEnabled $false -SourceTransportServers 'MAIL2010'

Mailbox Server Role Coexistence

At the Exchange 2010 Management Console, mailboxes located on Exchange 2003 Servers are classified as "Legacy Mailbox".

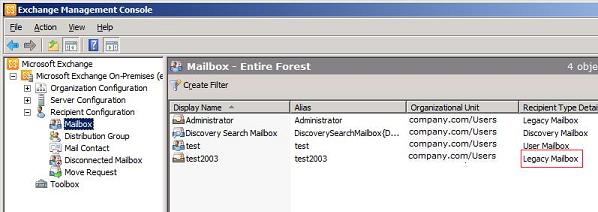

Legacy Mailboxes

The process of moving mailboxes to Exchange 2010 is called Local Move Request (local is for moving within the same forest). When moving from Exchange 2003, the user is disconnected during the move process. Unfortunately online mailbox moves as discussed in Exchange 2010 Online Mailbox Move, a Deep Dive, are only possible if the source mailbox is located on Exchange 2007/2010.

Mailbox move requests can be performed using both Exchange Management Console and Exchange Management Shell. For example:
New-MoveRequest -Identity 'user@company.com' -TargetDatabase EX2010DB01

Once the mailboxes are moved, we should proceed with moving public folders. To discover public folder replicas, at the shell run the following:
Get-PublicFolder -recurse | FL Name,Replicas

The next step is to open the Exchange 2003 System Manager and to locate the Public Folder store database. Here right-click the database and choose Move All Replicas. When prompted to choose for a destination public folder database, select the one located on Exchange 2010.

The process can be monitored using the same Exchange Management Shell command:
Get-PublicFolder -recurse | FL Name,Replicas

The Exchange 2003 Recipient Update Service should also be reconfigured to use Exchange 2010 Servers. This is done from the Exchange System Manager.

At the end, mailboxes and public folder databases on Exchange 2003 servers should be deleted using the Exchange System Manager. This process does not delete the database files from the file system, so file deletion should be done manually.

When all resources are moved to the Exchange 2010 Servers, the routing group connectors between the Exchange 2003 and 2010 routing groups should be deleted using the Exchange 2003 System Manager.

Remove Routing Group Connector

Finally Exchange 2003 can be removed from Control Panel | Add Remove Programs on Windows 2003.

Uninstall Exchange 2003

Conclusion

Upgrading an Exchange Organization from version 2003 to 2010 is a process that requires analyzing the current messaging infrastructure and designing the new one.

The two versions can coexist. If properly planned, keeping in mind legacy applications running on Exchange 2003, we can avoid service interruption.

At the end, introducing Exchange 2010 should allow us to lower costs and at the same time improve productivity.

References

Planning for Exchange 2010

Deploying Exchange 2010
