Configuring RBLs in Exchange 2003

In Exchange 2003 RBL configuration starts from:
Global Settings | Message Delivery | Connection Filtering

Click on Add to subscribe to a new RBL.

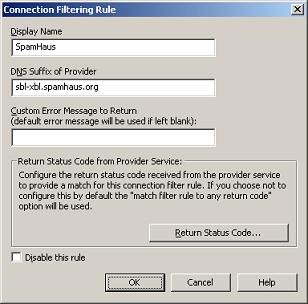

In the Connection Filtering Rule dialog that opens we need to fill in the Display Name and Provider DNS Suffix fields. The Display Name could be anything, but I would suggest entering the name of the RBL provider. The DNS suffix is specific to the list provider, for example SpamCop uses bl.spamcop.net, SpamHaus sbl-xbl.spamhaus.org etc.

On matching an RBL, the default rejection says:
<IP address> has been blocked by <Display Name>

This is a good response. It provides blocked legitimate senders with relevant information, allowing them to rectify the problem.

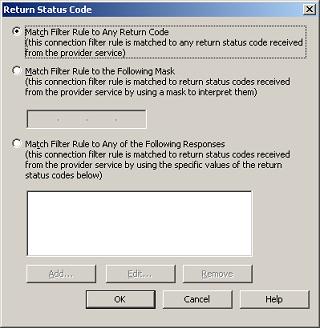

In the Connection Filtering Rule dialog click on the Return Status Code button.

From here we can customize RBL matching based on the 127.0.0.x code returned for a successful lookup. This customization is provider specific. In general we would keep the default settings i.e. emails are rejected whenever matching the RBL independently of the return code.

The option 'Match Filter Rule to the Following Mask' could be used to match multiple status codes with one setting. For example entering 127.0.0.3 would allow matches against status codes 127.0.0.1 and 127.0.0.2. Any other status code would not be matched and the email is allowed to go through.

The 'Match Filter Rule to Any of the Following Responses' option is more intuitive. Here the specific status codes to be matched are entered one by one through the list interface.

This completes the basic RBL configuration. If necessary you can repeat the same steps to subscribe to additional RBL services.

RBL Exceptions

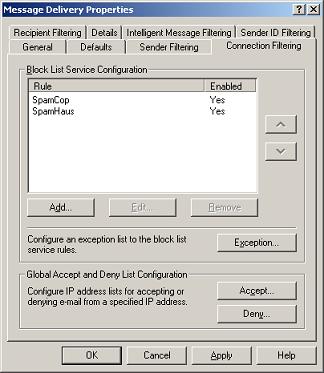

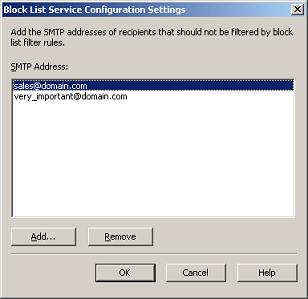

Getting back to the main Connection Filtering property page we can configure Recipient and IP base exceptions. Clicking the Exception button brings the recipient exception list dialog. Here enter the recipient addresses whose emails are to skip RBL filtering. This can be useful for mailboxes receiving highly critical emails, where false positives cannot be tolerated.

The IP Accept and Deny lists also work in combination with RBLs. The lists identify hosts whose emails are to be always accepted or rejected. Emails originating from hosts on the IP Accept list skip RBL processing. Configuring these lists was discussed in depth in an earlier article, Connection Filtering IP Accept List in Exchange SP2.

Enabling Connection Filtering and RBLs

Once connection filtering is configured, it is necessary to enable it on each of the SMTP Virtual servers. Again Connection Filtering IP Accept List in Exchange SP2 goes through the necessary steps.

Applying RBLs behind the Network Perimeter

As long as Exchange is directly handling internet originating email, the IP to be looked up at the RBL is readily available. Otherwise when sitting behind some other SMTP host, the necessary IP must be extracted from the email headers. For this to work the range of local IPs must be configured within Exchange under:
Global Settings | Message Delivery | General

Once again Connection Filtering IP Accept List in Exchange SP2 goes through the configuration details.
