Exchange 2013 Administration Center in Pictures (Part 2)

Alexander Zammit

Alexander Zammit Photo

Alexander Zammit has been developing server applications for over 15 years. Most of his works involve Exchange integrated applications, including a FAX server, a mail security product and anti-spam products.

Cast your Vote
Poor Excellent

Today we continue our Exchange 2013 Administration Center tour. Here we cover the categories Organization, Protection, Mail Flow, and Mobile. Some of the new features included under these categories are the Apps and Anti-malware filtering.

Mail Flow

The Mail Flow category brings together many transport related options. Here we have Rules, Delivery Reports, Accepted Domains, Email Address Policies, Receive Connectors, and Send Connectors. These are pretty much the same settings as in Exchange 2007/2010. So we only take a quick look at Rules and Delivery Reports.

The Rules configuration interface is very similar to the one provided by the Exchange 2010 Control Panel discussed in Configuring Transport Rules from OWA/ECP

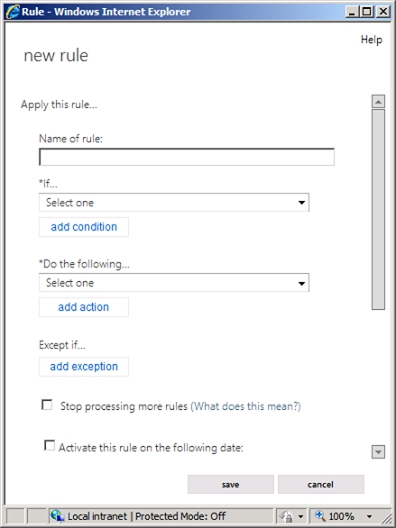

Exchange 2013 | Mail Flow | Rules

The Delivery Reports category provides an interface for searching messages within mailboxes. Here you basically select the mailbox to search, the Sender/Recipient, and the Subject.

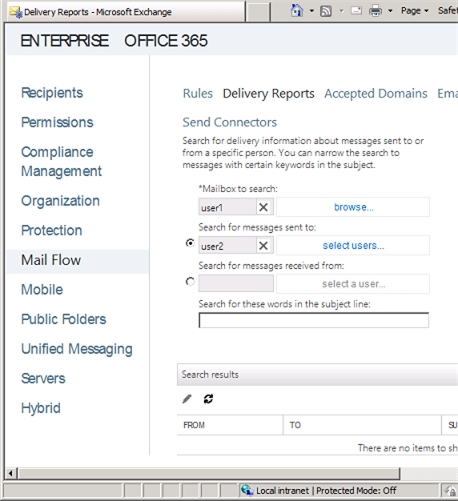

Exchange 2013 | Mail Flow | Delivery Reports



Mobile

At the Mobile category we have Mobile Device Access and Mobile Device Policies. Here is the Mobile Device Access configuration page:

Exchange 2013 | Mobile | Mobile Device Access

The 'edit' button shown at the right edge configures the Exchange ActiveSync access settings. This determines how devices, that are not "managed by a rule or personal exemptions", are to be handled. In this manner a device can be quarantined and a notification sent to the Administrator.

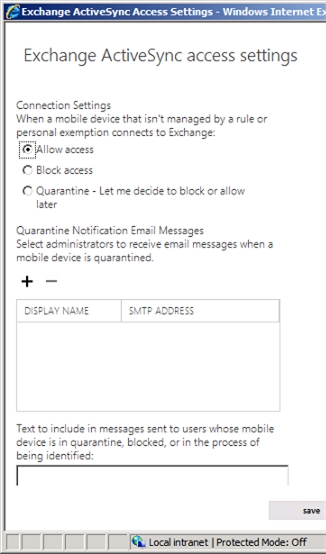

Exchange 2013 | Mobile | Mobile Device Access | ActiveSync Access

If we look back at the main Mobile Device Access page we can see the list of Quarantined Devices. This is where an Administrator moderates quarantined devices. From here devices are granted/denied access.

Lastly at the bottom of the Mobile Device Access page, we have the Device Access Rules list. This is what a rule looks like:

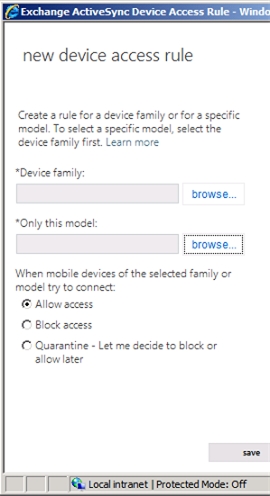

Exchange 2013 | Mobile | Mobile Device Access | Device Access Rule

Next we take a look at the Mobile | Mobile Device Policies configuration page:

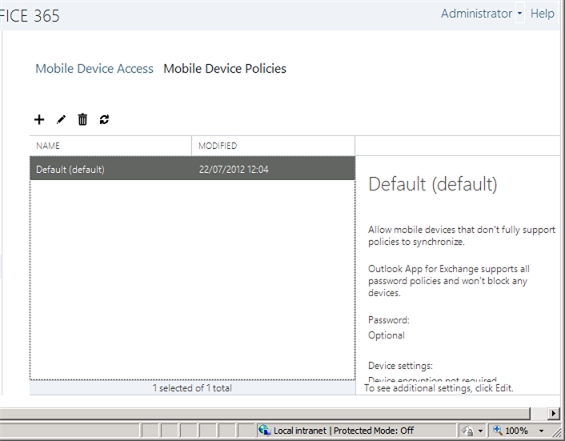

Exchange 2013 | Mobile | Mobile Device Policies

This is what the default policy looks like:

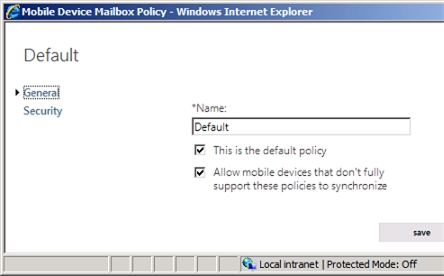

Exchange 2013 | Mobile | Mobile Device Policies | General

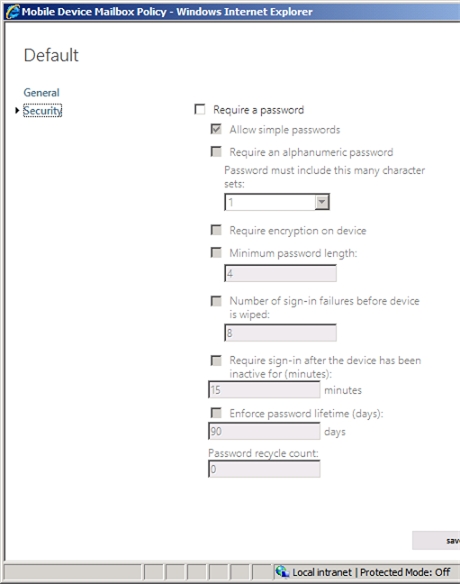

Exchange 2013 | Mobile | Mobile Device Policies | Security



Final Tips

Today we continued exploring the various Exchange 2013 configuration categories. We looked at Organization, Protection, Mail Flow, and Mobile.

Apps are opening the door to cloud extensibility. It will be interesting to see what kind of applications independent software vendors will be providing.

The anti-malware functionality is another addition introduced in this release. With Microsoft discontinuing the on-premises Forefront Protection 2010 for Exchange, anti-malware is contributing to fill the void created in the internal email hygiene side.



References

Exchange 2013 Administration Center in Pictures (Part 3)

Exchange 2013 Administration Center in Pictures (Part 1)

Exchange 2013 Preview Installation
